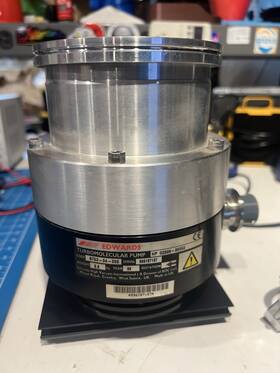

EDWARDS B753004000 Turbomolecular Turbo Vacuum Pump EXT255H

( Brand: Edwards ), ( Manufacturer Part Number: B753004000 ), ( Part Type: Vacuum Pump ), ( Country/region Of Manufacture: United Kingdom )

Review EDWARDS Turbomolecular Turbo Vacuum Pump

Edwards B753004000 EXT255H Turbomolecular Turbo Vacuum Pump

The Edwards B753004000 EXT255H Turbomolecular Turbo Vacuum Pump is a high-performance, reliable, and efficient vacuum pump designed for a wide range of applications in various industries. This pump, with its sleek and compact design, is a testament to Edwards' commitment to innovation and quality.

The B753004000 EXT255H is a turbomolecular pump that operates on the principle of rapid rotation to pump gas molecules. It is engineered to deliver consistent and stable vacuum levels, making it ideal for applications that require precise and reliable vacuum conditions. The pump is equipped with a 255 L/s pumping speed, ensuring fast pump-down times and efficient performance.

The pump features a robust construction with high-quality materials, ensuring durability and longevity. It boasts a high vacuum level, capable of achieving base pressures as low as 10-7 mbar. The B753004000 EXT255H also comes with a built-in vacuum gauge for easy monitoring of vacuum levels, as well as a user-friendly control panel for seamless operation.

This Edwards vacuum pump is designed for easy integration into various systems, with multiple connection options available. It is also fitted with advanced cooling and oil management systems to ensure optimal performance and long service life. The B753004000 EXT255H Turbomolecular Turbo Vacuum Pump is a versatile and powerful tool for any laboratory, industrial, or research environment that requires high-performance vacuum technology.

In summary, the Edwards B753004000 EXT255H Turbomolecular Turbo Vacuum Pump is a high-performance, reliable, and efficient vacuum pump that offers fast pump-down times, consistent vacuum levels, and robust construction for various applications. Its advanced features, ease of integration, and user-friendly design make it a valuable asset for any vacuum-dependent operation.

Analysis of Edwards B753004000 Ext255H Turbomolecular Turbo Vacuum Pump

1. High Vacuum Level: This pump can achieve ultra-high vacuum levels (UHV), making it suitable for various high-vacuum applications such as semiconductor manufacturing, scientific research, and electronics industry.

2. High Pumping Speed: The turbomolecular pump offers high pumping speed, which can significantly reduce pump-down time and increase productivity.

3. Reliability: Edwards is a well-known brand in the vacuum industry, and this pump is designed with high-quality components, ensuring long-term reliability and durability.

4. Low Oil Consumption: Unlike some other types of vacuum pumps, the turbomolecular pump consumes very little oil, reducing maintenance costs.

1. High Initial Cost: As a high-end vacuum pump, the Edwards B753004000 Ext255H has a higher price point compared to other vacuum pumps, which might be a significant barrier for some users.

2. Requires Regular Maintenance: While the pump consumes little oil, it still requires regular maintenance to ensure optimal performance, which can be time-consuming.

3. Noise Level: Turbomolecular pumps can be quite noisy, which might be a concern in some applications.

4. Potential for Oil Leaks: Although the pump has low oil consumption, there is still a risk of oil leaks, which can lead to contamination and downtime.

The Edwards B753004000 Ext255H Turbomolecular Turbo Vacuum Pump offers high-performance capabilities, making it an excellent choice for applications that require ultra-high vacuum levels. However, its high initial cost and the need for regular maintenance are factors to consider. If your application demands UHV and high pumping speed, and you are prepared for the associated costs and maintenance, this pump could be a valuable investment. On the other hand, if you have a lower budget or less demanding vacuum requirements, you might want to consider other, more cost-effective vacuum pump options.

Details:

All of the pumps have a purge-port in motor and bearing housing chamber. In order to protect the bearing lubricant from effects of high oxygen concentrations, you can introduce an inert purge gas through purge-port. The EXT 255Hi pumps are also supplied with an inlet-strainer which fits in the interstate-port. You can fit an optional vent-port adaptor and purge restrict to the purge-port control flow rate of gas filter supply.

The vent-port introduces vent gas part way up the pump rotor; this ensures maximum cleanliness. The drag pump is designed for operation at higher pressures than conventional turbomolecular pumps. The light alloy rotor is machined from one piece to form the angled blades of turbomolecular pump. All of the pumps are supplied with an inlet-screen fitted in bore inlet-flange.

The drag pump is made from pumping channels formed by helical grooves. This turbo vacuum pump utilizes turbomolecular technology to efficiently evacuate gases and achieve low pressures with high speed reliability. The rotor blades rotate between angled stater which are supported by spacer rings. The ball bearing is lubricated from an oil reservoir and wick mechanism.

For the blades to be effective, their speed must close thermal velocity of gas. In the drag pump stages, gas is further compressed as it pumped around channels formed by helical grooves. The rotor therefore rotates at up to 60000 r min-1. This configuration gives an optimum combination of pumping speed and compression when gases both high low molecular weight.

Gas from the inlet is compressed through each of bladed stages turbomolecular pump and transferred to drag. The inlet-screen also protects you from the sharp blades in pump. The pump is supplied with a manual vent-valve fitted to the vent-port. The EXT 255H, 255Hi and 255HVi pumps are compound vacuum that combine a turbomolecular pump drag on single shaft.

All of the pumps have a vent-port you can use to vent pump and your vacuum system atmospheric pressure. The inlet-screen and inlet-strainer protect the pump against damage which would be caused by debris enters. The pump is suitable for various applications requiring precise control of vacuum levels, making it an essential component research, industrial processes, and semiconductor manufacturing. The rotating assembly is supported at the inlet end by a friction less magnetic bearing and precision ceramic ball outlet.

The rotor and stater blades have an open structure at the pump inlet, a more closed outlet. The turbomolecular pump is made from a multi-stage axial-flow turbine which optimised for, operation in molecular flow conditions.

part #: b753004000 prices

• $450.00-$789.00

specifications valvplu:

• brand: Edwards
• mpn: B753004000
• part type: Vacuum Pump
• country/region of manufacture: United Kingdom

returns valvplu:

• policy: No Returns

seller valvplu:

• city: Philadelphia, Pennsylvania
• rating: 100.0%
• # reviews: 64

general valvplu:

• Pumps Pump Accessories > Vacuum Pumps > Turbomolecular Pumps
• condition: Used

offer valvplu:

• best offers: True
• quantity: 1
• sold: 0
• options: Ship-to-home
• started: August 8, 2025
• availability: In Stock

shipping valvplu:

• type: Calculated
• class: Standard
• service: USPS Ground Advantage
• cost: $85.10
• transit: 5-12 Days
• carrier: USPS

payments valvplu:

• wallet: Apple-pay
• credit card: Discover
• other
